What are we building today?

Formulas & calculators

Bore, stroke, CC, and build math

A quick-reference area for displacement math, bore and stroke charts, compression notes, and common mini bike engine combinations.

Engine displacement is the cylinder bore area multiplied by crankshaft stroke, then multiplied by the number of cylinders.

Displacement Calculator

Imperial Metric
Area of the cylinder bore x crankshaft stroke x number of cylinders.

Top Speed Calculator

Gear ratio and MPH estimate

Calculated Results

Estimate only. Real speed changes with torque converter shift, clutch slip, rider weight, tire growth, gearing load, and engine power.

GX200 / Predator reference

Bore X Stroke Chart

CC = 0.0007854 x Bore2 x Stroke

Bore / Stroke 54mm 58mm 59mm 60mm 62mm 63.5mm
68mm196cc211cc214cc218cc225cc231cc
69mm202cc217cc221cc224cc232cc237cc
70mm208cc223cc227cc231cc239cc244cc
71mm214cc229cc233cc237cc245cc251cc
72mm220cc236cc240cc244cc252cc258cc
73mm226cc243cc247cc251cc260cc266cc
75mm239cc256cc261cc265cc274cc280cc

Valve train setup

Pushrod Information

  • 5.260 in. Stock-style length for many GX200, clone, 6.5 OHV, and 224 Predator combinations with stamped rockers.
  • 5.160 in. Often used with aluminum or roller-tip rockers, especially when geometry changes.
  • 5.110 in. Shorter option for milled heads, roller rockers, and tighter valve-train geometry.
  • 5.440 in. Common Hemi reference length and useful where longer pushrod geometry is needed.
Always verify sweep pattern, lash cap use, head milling, lifter height, rocker style, and cam base circle before final assembly.

Compression setup

Head Volume & Compression Notes

Smaller combustion chambers generally raise compression. Larger chambers generally lower it. Head gasket thickness, piston deck height, valve reliefs, and head milling all change the final number.

  • Head volume: Measured in cc. A lower cc head usually makes more compression.
  • Deck height: Piston position at top dead center changes trapped volume.
  • Gasket thickness: Thicker gaskets add volume and reduce compression.
  • Fuel choice: Higher compression may need better fuel and tighter tuning.

GX200 / Clone / Predator / DLM 240cc

General Engine Information

Builder-focused education for GX200-platform engines, clone parts, Predator generations, compatibility, and why the DLM 240cc prebuilt stands apart.

DLM 240cc prebuilt benchmark: The DLM 240cc is built around a 72 mm flat-top piston, 59 mm oil-journal crankshaft, pressurized oiling, spin-on filtration, and the DLM Shredder cylinder head. It is positioned as the premium ready-built option for riders who want more engineering than a typical splash-lubricated Predator-style build.
True Pressurized Oiling DLM Feature
  • DLM 59 mm oil-journal crankshaft feeds oil through the crank instead of relying only on splash oiling.
  • DLM Cast Oil Pump & Filter Side Cover adds a full pressurized oiling system.
  • Spin-on oil filtration helps keep debris out of the rotating assembly.
  • Oil pressure and filtration are features normally associated with automotive and industrial engines, not typical mini bike engines.
Why It Matters
  • Better rod and bearing protection than basic splash-only oiling.
  • Cleaner oil during use, especially at sustained RPM.
  • Improved long-term durability and reliability for customers who ride often.
  • A stronger foundation for riders who want dependable power without piecing a build together blindly.
DLM Shredder Cylinder Head
  • 18 cc combustion chamber.
  • 28.5 mm intake valve and 24 mm exhaust valve.
  • 1.2:1 stamped rocker arms.
  • Improved airflow, better cylinder filling, strong low-end torque, and excellent top-end power potential.
  • More efficient than many stock Predator heads when matched to the right cam, carb, and exhaust.
Bottom End Configuration
  • 72 mm flat-top piston.
  • Reinforced cast rod.
  • 59 mm oil-journal crankshaft.
  • Pressurized oiling system with full-flow oil filtration.
  • Balanced for reliability, power, cost-effectiveness, and longevity.
PlatformArchitectureBuilder Notes
Honda GX20068 x 54 mm, 196 cc, original small-block utility engine architecture.The reference point for many clone parts, side covers, heads, ignition parts, and bolt-on upgrades.
Clone EnginesMost are based around GX200-style architecture.Many crankcases, heads, side covers, and internal components interchange, but measuring is still required.
Predator EnginesPredator engines are related but not always direct GX200 clones.Generation, hemi/non-hemi head design, crank taper, journal sizes, and crankcase changes affect compatibility.
DLM 240ccGX200-style performance architecture with 72 mm piston and 59 mm oil-journal crank.Designed as a premium prebuilt package with pressurized oiling, filtration, and Shredder head airflow.
Honda GX200 Platform
  • The GX200 architecture became the foundation for many small-block performance builds.
  • Clones exist because the GX200 design is simple, durable, and supported by a large aftermarket.
  • Common dimensions and bolt patterns make the platform easy to upgrade when parts are matched correctly.
  • Not every GX-style part is universal; crankcase, crankshaft, piston, and head details still matter.
Clone Engines
  • Most clone engines share GX200-style architecture.
  • Crankcase, cylinder head, side cover, ignition, and internal component compatibility is often good across true clones.
  • Clone engines are popular because they are affordable and have a broad upgrade path.
  • Always check bore, stroke, crank journal, flywheel taper, and side cover style before ordering parts.
Why DLM Uses A 240cc Benchmark
  • The 72 mm bore and 59 mm stroke create a strong displacement increase without forcing customers into a one-off parts puzzle.
  • The oil-journal crank and oil pump side cover improve lubrication compared with standard splash-only layouts.
  • The Shredder head, larger valves, and 18 cc chamber support torque and airflow together.
  • It gives customers a complete prebuilt path instead of asking them to guess which clone and Predator parts work together.
Common Dimensions To Watch
  • GX200 base size: 68 mm bore x 54 mm stroke.
  • Predator 212: 70 mm bore x 55 mm stroke.
  • Predator 224: larger architecture than the traditional 196 cc GX200-style clone.
  • DLM 240cc: 72 mm bore x 59 mm stroke with oil-journal crankshaft.
Compatibility reminder: Similar-looking engines can use different crankshafts, flywheel tapers, deck heights, oil seals, or crankcases. Match the actual engine generation and measurements before buying parts.
Predator 212 Gen 1 Non-Hemi Compatibility: Limited
  • Reasoning: This generation uses unique crankcase architecture, so many major internal crankcase components do not directly interchange with GX200/clone parts.
  • The flywheel taper is commonly compatible with GX200/clone/224 non-hemi style flywheels, so flywheel options are better than the internal-crankcase compatibility.
  • Builders should verify crankshaft, camshaft, side cover, governor, and internal component fitment before ordering.
Predator 212 Gen 2 Hemi Compatibility: Good
  • Reasoning: The crankcase compatibility is good compared with more limited Predator variants, so some GX200/clone-style crankcase parts are usable.
  • The limiting factor is the unique Hemi flywheel taper; standard GX200/clone flywheels do not fit.
  • Hemi head, piston, valve train, and flywheel parts require Hemi-specific planning.
Predator 212 Gen 3 Non-Hemi Compatibility: Limited
  • Reasoning: Major crankcase and governor changes reduce compatibility with traditional GX200/clone parts.
  • The flywheel taper is commonly compatible with GX200/clone/224 non-hemi style flywheels, but that does not make the whole engine broadly interchangeable.
  • Builders should verify crankcase, governor, camshaft, crankshaft, and side-cover compatibility before ordering.
Predator 224 Non-Hemi Compatibility: Excellent
  • Reasoning: This is one of the strongest GX200/clone-compatible Predator platforms and has excellent aftermarket support.
  • It is commonly preferred because it uses a 58 mm stroker crank compared with the Predator 212 55 mm crank.
  • It also has larger factory valves: 27 mm intake and 25 mm exhaust, compared with Predator 212 non-hemi 25 mm intake and 24 mm exhaust.
  • Its compatibility and stronger factory specs make it a strong DIY build platform, although it still does not include DLM 240cc oil pressure or filtration.
Predator 224 Hemi Compatibility: Very Limited
  • Reasoning: Major components are unique, including the block, crankshaft, connecting rod, camshaft, cylinder head, and side cover.
  • It uses Predator Hemi-style flywheel taper and works with existing Predator Hemi aluminum flywheels, not generic GX200/clone flywheels.
  • Bore x stroke: 74.5 mm x 51.5 mm. Wrist pin: .510 in.
  • The block is wider through the middle, the camshaft is longer, the crankshaft is wider, and the cylinder position is lowered relative to crankshaft centerline.
  • Side cover swaps are not possible; clone/Predator crankshafts and camshafts are not direct replacements.
  • The performance market is limited due to weak factory piston design and lack of direct replacement piston options.
Builder Consideration
  • Predator engines are affordable and popular, but they do not include the DLM 240cc pressurized oiling and filtration package.
  • For customers who want a complete prebuilt powerplant, the DLM 240cc reduces the guesswork of matching parts.
Engine PlatformGX200/Clone CompatibilityReasoning
GX200 / CloneCompatibility: ExcellentBest aftermarket support and the reference architecture for many clone parts.
Predator 224 Non-HemiCompatibility: ExcellentStrong GX200/clone compatibility, 58 mm crank, 27/25 valves, and strong aftermarket build support.
Predator 212 Gen 2 HemiCompatibility: GoodGood crankcase compatibility, but unique Hemi flywheel taper requires Hemi-specific flywheels.
Predator 212 Gen 1 Non-HemiCompatibility: LimitedUnique crankcase architecture limits major internal interchange, but flywheel taper is commonly clone-style.
Predator 212 Gen 3 Non-HemiCompatibility: LimitedRevised crankcase/governor design limits traditional GX200/clone interchange, though flywheel taper is commonly clone-style.
Predator 224 HemiCompatibility: Very LimitedUnique architecture and major components; uses Hemi-style flywheel taper.
Usually Interchanges Compatibility: Good-Excellent
  • GX200/clone engines have excellent compatibility and the largest aftermarket support because many clone parts follow the GX200 architecture.
  • Many GX200 clone cylinder heads, side covers, ignition parts, recoil starters, and valve train parts interchange across true clone engines.
  • Predator 224 non-hemi generally has excellent GX200/clone compatibility because it remains close to the common non-hemi builder layout while adding the 58 mm crank and larger valves.
  • Some rods and pistons interchange only when bore, crank journal, wrist pin, compression height, and deck clearance match.
Does Not Always Interchange Compatibility: Limited-Very Limited
  • Non-hemi and Hemi heads, pistons, flywheels, and valve train parts can differ because chamber layout, piston shape, valve angle, and flywheel taper may change.
  • Predator 212 Gen 1 and Gen 3 non-hemi engines have crankcase-specific differences that limit major internal interchange even when the flywheel taper is clone-style.
  • Predator 224 Hemi major components are unique, so compatibility is very limited even though Hemi-style aluminum flywheels may fit.
  • Oil pump side covers require the correct crankcase, oil passage, and oil-journal crankshaft setup.
Crankshafts
  • Crankshafts are one of the most important parts to verify.
  • Stroke, journal size, flywheel taper, side cover style, and oiling design all matter.
  • The DLM 59 mm oil-journal crankshaft is designed to work with the DLM pressurized oiling system.
Connecting Rods & Pistons
  • Rod length alone does not guarantee compatibility.
  • Check crank journal diameter, piston pin size, compression height, bore size, and deck clearance.
  • DLM 240cc uses a 72 mm flat-top piston and reinforced cast rod as a matched package.
Cylinder Heads
  • Combustion chamber size, valve size, pushrod length, rocker ratio, and head gasket bore all affect fit and performance.
  • The DLM Shredder head uses an 18 cc chamber with 28.5 mm intake and 24 mm exhaust valves.
  • Hemi heads do not swap directly with non-hemi layouts.
Flywheels & Ignition
  • Flywheel taper and ignition compatibility must be verified before mixing Honda, clone, Predator, Hemi, and non-hemi parts.
  • Predator 212 Gen 1 and Gen 3 non-hemi flywheel tapers are commonly clone-style, while Predator 212 Gen 2 Hemi and Predator 224 Hemi use Hemi-style taper.
  • Do not assume every Predator flywheel fits a GX200-style crank.
  • Use the correct aluminum flywheel for high-RPM builds.
Customer confidence tip: If a part listing does not clearly state your engine generation, bore, crank taper, or side cover style, ask before ordering. Compatibility questions are cheaper than buying the wrong parts.
CategoryDLM 240cc PrebuiltPredator 224 Non-HemiPredator 224 HemiGX200/Clone BuildPredator 212 Build
OilingPressurized oiling with oil-journal crankBasic splash lubricationBasic splash lubricationUsually splash unless convertedBasic splash lubrication
FiltrationSpin-on oil filtrationNo full-flow filter in stock formNo full-flow filter in stock formDepends on side cover and crank setupNo full-flow filter in stock form
Head packageDLM Shredder, 18 cc, 28.5 mm intake, 24 mm exhaustStrong non-hemi platform with 27/25 valvesUnique Hemi layoutDepends on selected headVaries by generation
CompatibilityGX200/clone-style build path with matched DLM partsExcellent GX200/clone compatibilityVery limited major-component compatibilityExcellent when true clone parts are usedRanges from good to limited by generation
Customer fitPremium complete packageStrong DIY platformNiche Hemi platformFlexible but parts-dependentBudget platform that needs verification
DLM 240cc vs Predator 224 Non-Hemi
  • Predator 224 non-hemi is an excellent GX200/clone-compatible build platform with a 58 mm crank and 27/25 valves.
  • DLM 240cc steps above it as a complete package by adding 72 mm bore, 59 mm oil-journal crank, Shredder head airflow, pressurized oiling, and spin-on filtration.
  • The DLM package focuses on service life, sustained-RPM reliability, and complete prebuilt confidence.
DLM 240cc vs Predator 224 Hemi
  • Predator 224 Hemi has very limited major-component compatibility and a smaller performance parts path.
  • DLM 240cc keeps the build closer to the GX200/clone upgrade ecosystem while adding displacement, oil pressure, filtration, and the Shredder head.
  • This makes the DLM engine easier to understand, service, and upgrade for most mini bike customers.
DLM 240cc vs GX200/Clone Builds
  • GX200/clone builds have excellent aftermarket support, but performance depends heavily on parts selection and assembly quality.
  • DLM 240cc gives customers a ready-built architecture with increased displacement, head flow, oil pressure, and oil filtration already matched.
  • It is a premium path for buyers who want strong out-of-box performance and a clear upgrade foundation.
DLM 240cc vs Predator 212 Builds
  • Predator 212 compatibility depends heavily on generation and hemi/non-hemi layout.
  • DLM 240cc provides more displacement, a matched Shredder head, pressurized oiling, and spin-on filtration without the same generation-confusion problem.
  • Predator 212 builds can be cost-effective, but the DLM 240cc is the stronger complete-package option.
Positioning note: Predator and clone builds can make excellent power, but the DLM 240cc is built to remove compatibility confusion and deliver a complete premium prebuilt engine with lubrication and filtration advantages.
FastenerGX120GX160/GX200
Crankcase cover bolts12 N-m / 9 lbf-ft24 N-m / 17 lbf-ft
Cylinder head bolts24 N-m / 17 lbf-ft24 N-m / 17 lbf-ft
Connecting rod bolt12 N-m / 9 lbf-ft12 N-m / 9 lbf-ft
Rocker arm pivot bolt24 N-m / 17 lbf-ft24 N-m / 17 lbf-ft
Rocker arm pivot lock nut10 N-m / 7 lbf-ft10 N-m / 7 lbf-ft
Oil drain bolt18 N-m / 13 lbf-ft18 N-m / 13 lbf-ft
LocationGX120GX160/GX200
Crankcase cover6 x 28 mm8 x 32 mm
Cylinder head8 x 55 mm x48 x 60 mm x4
Governor arm shaft6 x 12 mm x26 x 12 mm x2
Torque warning: Tighten cylinder head and crankcase cover bolts in a crisscross pattern across 2 to 3 steps. Always torque to spec; over-tightening distorts aluminum.
Must Replace
  • Cylinder head gasket: never reuse.
  • Crankcase cover gasket: never reuse.
  • Oil drain bolt washer: replace every drain.
  • GX200 intake valve stem seal: replace on every reassembly.
  • Oil level switch O-ring: install firmly in groove.

Matched packages

Shop prebuilt engines

Fixed engine packages with parts already matched for a purpose. Best for riders who want a proven setup without picking every internal part.

Shop Prebuilt
Street Trail Drag Cruiser
  • Ready-to-ship or limited-run engines
  • Parts chosen to work together
  • Great starting point for new customers

Customer-selected parts

Shop custom engine builds

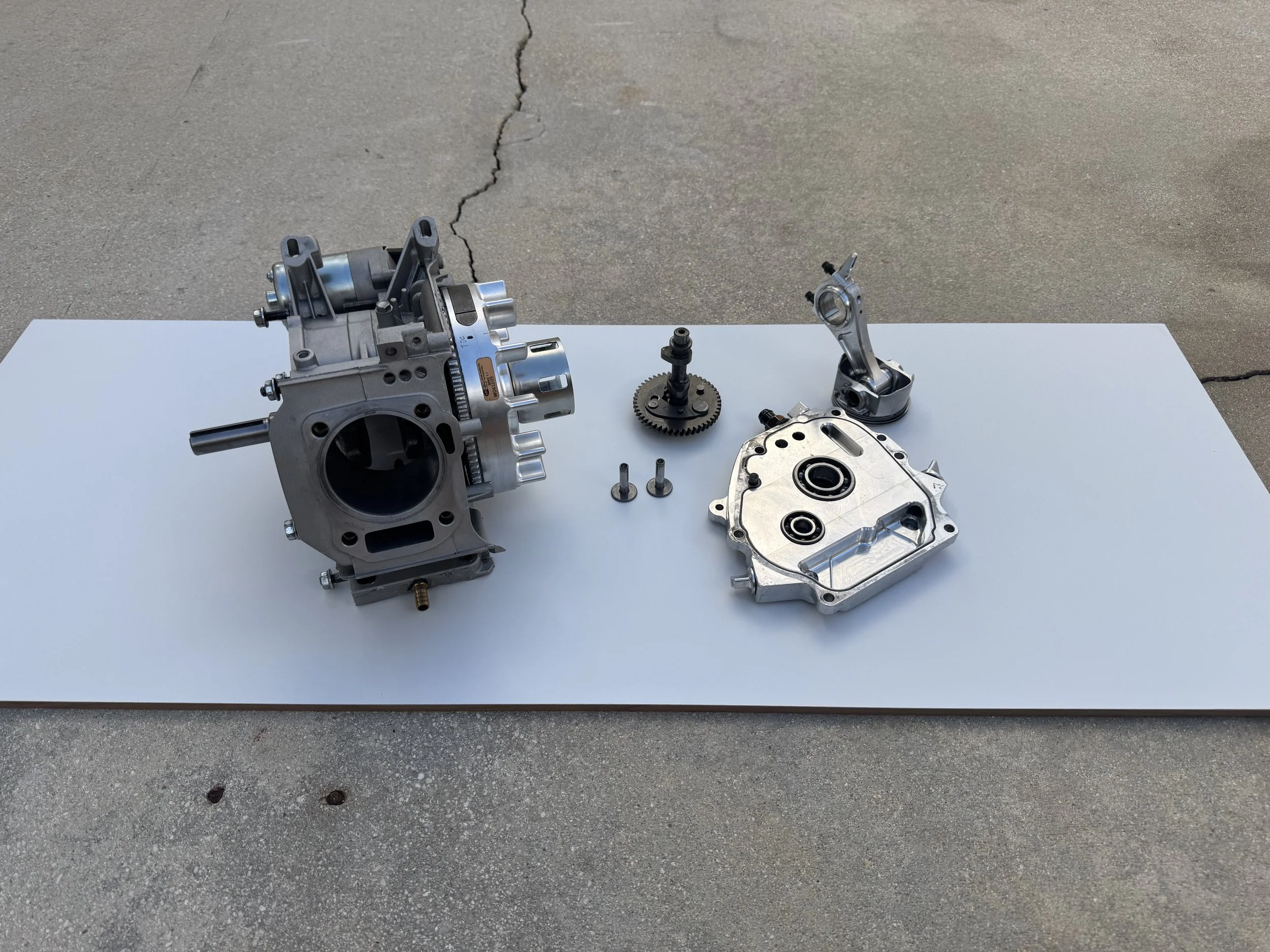

Start with the Clone 240cc engine blueprint, choose available parts from the website, then we review, assemble, and ship the engine out.

Build A 240cc Engine
Carb Cam Head Rod Flywheel Clutch
  • Compatibility reviewed before assembly
  • Optional test run and break-in service
  • Built around frame, tire size, and riding style

Learn before you order

General engine building knowledge

Guides for understanding the parts, setup choices, and maintenance basics that make a mini bike engine live longer and run better.

Read Guides
Cam choice Carb sizing Break-in Gearing
  • Torque vs RPM build choices
  • How to choose parts that work together
  • Maintenance and first-start tips

Motor Labs

Motor Labs

Filters

No results found

No results match your search. Try removing a few filters.

Coming Soon…
