Down Low Minis / Motor Labs
Real Fitment. Real Filtration.
GX200 / Clone Oil Pump & Filter KitWhy this kit matters
Oil pressure and spin-on filtration in a tight mini bike package.
This side cover gives GX200 / Clone-style engines a cleaner, more controlled oiling setup than basic splash-only lubrication. Pressurized oiling helps move oil where the engine needs it, while the spin-on filter catches fine debris before it keeps circulating through the crankcase.
- Cleaner oilFilter media traps fine material that would otherwise stay in circulation.
- Better protectionHelps support rod, bearing, and rotating assembly life.
- Serviceable setupSpin-on filter placement makes maintenance easier.
Mega Moto 80 / RT100
Frame Clearance Confirmed

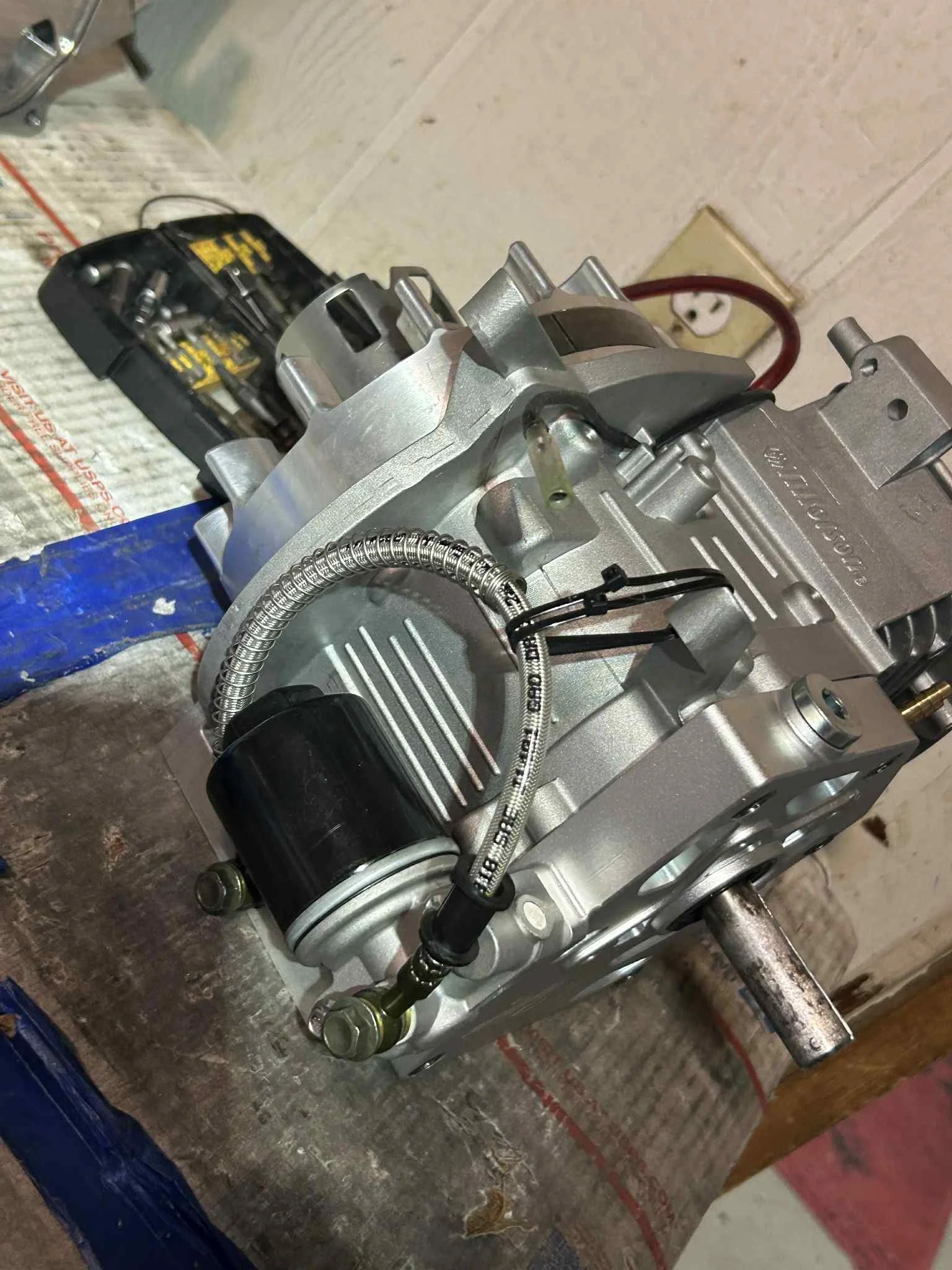

Side cover and filter shown installed in-frame so customers can see the frame tube, filter location, and service access before ordering.
Starter clearance note
Flip the Relay
When using electric start, the relay on the starter motor needs to be flipped so it clears the oil filter. This keeps the filter usable without fighting the starter hardware.
Cut-open filter media
What filtration catches
The cut-open filter media shows why filtration matters. Fine debris and break-in material can collect in the filter instead of continuing through the oiling system.
Builder checklist
Before final install
- Verify side cover gasket alignment and sealing surfaces.
- Confirm the filter clears the frame, starter, and wiring.
- Flip the starter relay when needed for filter clearance.
- Prime and inspect the oiling system before hard running.
- Recheck for leaks after the first heat cycle.
